Apart from the definition and evaluation of Circular Business Models, a part of FENIX also involves the investigation of the adoption of Industry 4.0 techniques to better utilize the above-mentioned models in order to improve recyclability related KPIs. To this end, a Decision Support System (DSS) was implemented and is currently being tested and validated together with the execution of the use cases by the pilot users. The DSS is the main focus of Work Package 4 of the FENIX project, which is led by SINGULARLOGIC.
Briefly, main functionalities of the DSS can be summarized to the following points:
Real time collecting of sensor data from Industry 4.0 capable plants:
The DSS can be “plugged” to any streaming data source by utilizing the FENIX Semantic Model. This Model was defined as part of the DSS with the aim of providing a unified representation of the various entities and relationships of the Circular Business Models. Sensor data that are collected in FENIX are uplifted to this model; this process provides a unified representation of all data that allows much more efficient processing.
Analytics Engine for extracting patterns from streaming data
As the operational behavior of the equipment correlates with the output of the pilot plant, it is essential to investigate these correlations as to discover good predictors that indicate whether the plant operates efficiently. For example, drops in power consumption of a Cobot may indicate a failure in the disassembly process of a circuit board.
In FENIX, data from POLIMI’s Cobot are being used to investigate whether patterns of surges and outlier behavior can be extracted and correlated with the quality of output that POLIMI provides in terms of disassembled components.

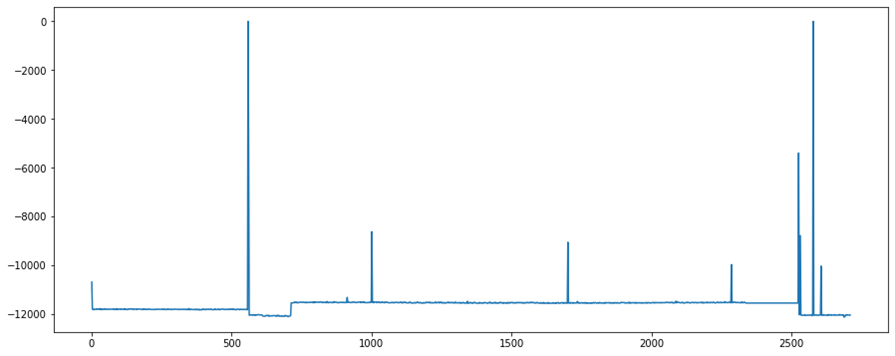

Figure 1: Power Surges in Cobot Operation (data provided by POLIMI)
Forecasting of future behavior of equipment
Being able to forecast future behavior of the production line may greatly enhance the decision making process by facilitating predictive actions. If, for example, power surges are correlated with faulty input, or specific power usage patterns are correlated with low yield input, then correct prediction of these surges and patterns may lead to discarding the problematic input thereby saving resources and increase the recyclability of processed resources.
In FENIX, the DSS makes use of various supervised or non-supervised (depending on the input data) algorithms to decompose input signals and for generating predictions regarding future sensor values.

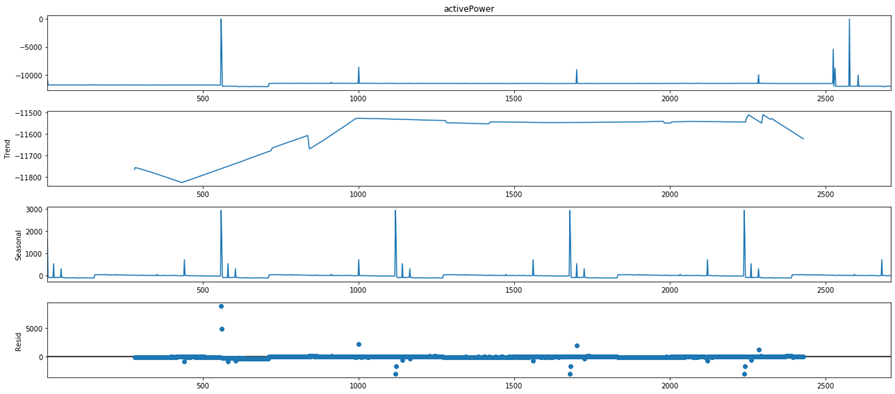

Figure 2: Decomposition of power usage data of Cobot into Trend, Seasonal and Residual component (data provided by POLIMI)
Rule based Decision Support System
By combining knowledge of the FENIX Semantic Model, the data produced through the various pilot plants and supported by analytics that extract predictions and patterns from these data, the DSS employs a rule engine to generate suggestions and enhance the decision-making process. For FENIX, the main scenarios that the DSS Rule Engine is used are the following:
- Jewelry Ordering. By placing a request for raw materials for new jewels, the DSS propagates this request and retrieves the amount that can be retrieved using the available raw resources (e.g. recycled boards) and projects the total amount and type of resources that are required to process the order
- 3D printing ink calculation. In the same manner, upon a request of a printing, the DSS computes the amount of raw resources needed for the production of ink and propagates this request.
SINGULARLOGIC sees a great opportunity in adopting Industry 4.0 techniques in recycling as preliminary results suggest that, as with other sectors, Industry 4.0 may indeed improve the performance indicators, especially when organizations are interconnected in a way that allows them to trade their recycled and/or waste products.
